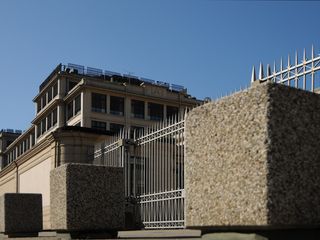

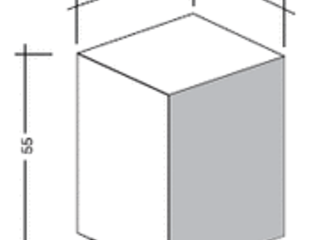

Milano
Delivery of precast concrete elements with the function of a bollard in a square shape and with following dimensions: 45 cm x 45 x 55 cm. The elements are made of solid concrete and have a surface in exposed aggregate or sanded concrete.
Concrete values: medium concrete compressive strength of 40 N/mm2 (500 kg/cm2).
Water impermeability: maximum water penetration depth at the surface: 17 mm according to DIN standard 1048 (frost resistance).
The stands are coated with a copper sheet.
Measures | Height | Weight |
---|---|---|
cm | cm | kg/Piece |
45 x 45 | 55 | 250 ca. |
Torino
Delivery of precast concrete elements with the function of a bollard in a round shape and with following dimensions: of 45 x 55 cm. The elements are made of solid concrete and have a surface in exposed aggregate or sanded concrete.
Concrete values: medium concrete compressive strength 40 N/mm2 (500 kg/cm2). Water impermeability: maximum water penetration depth at the surface: 17 mm according to DIN standard 1048 (frost resistance). The bases are coated with a copper sheet.
Diameter | Height | Weight |
---|---|---|
cm | cm | kg / Piece |
45 | 55 | 195 ca. |

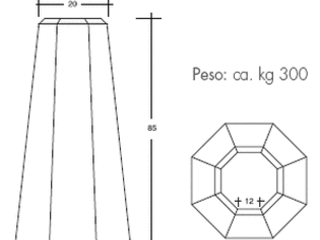

Parma
Betonform Bollard Model PARMA - pyramidal structure and octagonal shape. The elements are made of solid concrete and have a surface in exposed aggregate or sanded concrete.
Concrete values: medium concrete compressive strength 40 N/mm2 (500 kg/cm2). Water impermeability: maximum water penetration depth at the surface: 17 mm according to DIN standard 1048 (frost resistance).
The anchoring is achieved by encasing in a concrete foundation.
Measurements on the bottom | Height | Weight |
---|---|---|
cm | cm | kg / Piece |
50 | 85 | 300 ca. |

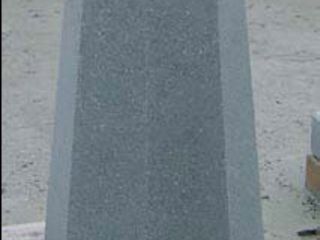

Parma II
Diameter | Height | Weight |
---|---|---|
cm | cm | kg / Piece |
40 / 26 | 90 | 200 ca. |

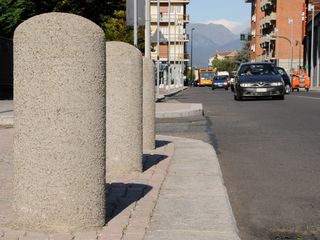

Venezia I
Delivery of precast concrete elements with the function of a barricade in a round shape and following dimensions: 30 x 100 cm. The elements are made of solid concrete and have a surface in exposed aggregate or sanded concrete.
Concrete values: medium concrete compressive strength 40 N/mm2 (500 kg/cm2). Water impermeability: maximum water penetration depth at the surface: 17 mm according to DIN standard 1048 (frost resistance).

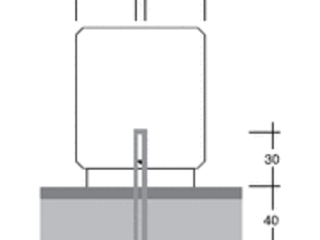

The anchoring is achieved by encasing in a concrete foundation. To create a solid bond between stone and concrete, four reinforced steel rods are encased in concrete at the bottom of the barricade.
Diameter | Height | Weight |
---|---|---|
cm | cm | kg / Piece |
30 | 100 | 160 ca. |

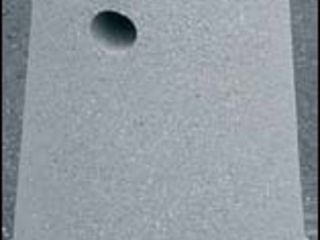

Venezia II
Diameter | Height | Weight |
---|---|---|
cm | cm | kg / Piece |
38 | 80 | 115 ca. |
